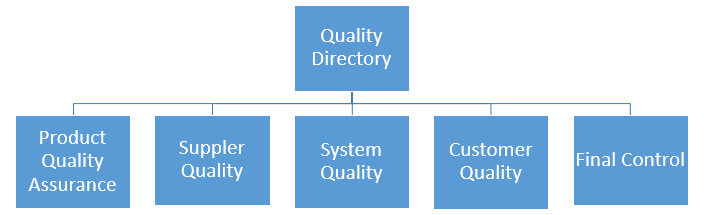

3D PLUS's Quality and Reliability Organization is the executive arm of the quality assurance for the entire company. It is responsible for ensuring that 3D PLUS has the most competitive systems, processes, and programs in place to drive strategic quality improvement goals. It maintains, analyzes, and reports all internal and external quality and reliability data. As the customer advocate, it also has the overall responsibility for 3D PLUS's Customer Satisfaction Plan, which includes scorecard and customer survey management. 3D PLUS's Global Quality and Reliability structure is outlined in the below chart.

The Global Quality and Reliability Team are all together in the same room to exchange information on daily basis in order to develop major goals, initiatives, and programs based on internal and external data.
Quality metrics goals have managers that are responsible for measuring, analyzing and driving improvements toward defined targets.
These goals and initiatives are closely monitored and shared with all levels of the organization.

To ensure that stringent product quality and reliability expectations are integrated throughout the company, 3D PLUS has established a global Quality Policy.
The policy is spread within several key management control system documents. The following policies are currently in effect:

End Item Data Package (EIDP)

In addition to the certificate of conformance the EIDP delivered for space grades products, is as well providing information related to products like serial numbers, Lot Acceptance Test (LAT) parts, components traceability information, Request for Waiver (RFW) and Non Conformance Report (NCR) if applicable, in standard generic Total lonizing Dose (TID) report, LAT and Destructive Physical Analysis (DPA) module. As an option LAT and DPA of embedded component can be delivered, with specific TID. In addition, supplementary test mentioned in Harsh Environment section can be performed for a given purchase order. The EIDP is also mentioning In and Out products during module manufacturing as a standard. 3 parts are taken for dimensioning andweight check.

Certificate of Conformance (COC)

A certificate of conformance is delivered with every single purchase order, in which you will find 3D PLUS reference, 3D PLUS cage code 3FBQ6 (applicable for US and Canada), customer purchase order, applicable specification and revision level, quantity, product date code, quality level, temperature range, and options if any.

Screening Level Description

The screening flow depends on the stacking technology flow used: Standard Packages stacking (Flow 1) or Flex stacking (Flow 2).
In space terminology, Engineering Models (EM) correspond to the Industrial level and Flight Models (FM) correspond to the Space level. It shall be noted that this standard screening level can be amended through a detail specification / source control drawing-

Technology Steps & operations Screening level
Flow 1 Flow 2 Commercial Industrial Space
Applicable documentation
Process Identification Document (PID)
Module test specification
Module detail specification / Source Control Drawing
Procurement and Element Evaluation for EEE Parts, Mechanical Parts and Materials
Components and Materials lots traceability
Components and Materials Lot Acceptance Test (LAT)
Radiation Lot Acceptance Test (RLAT) ✅(7)
Modules manufacturing
Manufacturing traceability for each module lot
Flex assembly according to PID
Electrical test at +25°C – Go / NoGo (3) (3)
Burn-in flex 168hrs +125°C followed by an electrical test at +25°C – Go / NoGo (2)
Flex Precap visual inspection before stacking
Module Manufacturing according to the PID
Electrical test at +25°C – Go / NoGo
Modules screening
Stab. Bake 72hrs +125°C
Thermal cycles (x10) –55°C/+125°C
Electrical test at +25°C pre burn-in with R&R
Burn-in 240hrs / +125°C
Electrical test at Tmin, +25°C, Tmax, (6)
(Go/Nogo)

(R&R)
Parameters drift calculation at +25°C
P.D.A. calculation (4)
Final external visual inspection
Dimensions measurements (3 modules)
Modules serialization (1)
Module Lot Acceptance Test – (7)
Life test 1000hrs / +125°C
Final DPA (1 module)
Quality Assurance
Customer source inspection
Documentation delivered Delivery Note Delivery Note + CoC Delivery Note + EIDP (8)



(1) If option 1 is selected, modules are serialized and components lots traceability is kept through the flow.
(2) If option 2 is selected, a 168hrs burn-in is performed for each flex. Therefore, the module burn-in duration may be reduced to 96 hrs.
(3) If option 3 is selected, each flex is electrically tested.
(4) PDA calculation is in accordance with ECSS-Q-ST-60-13C:
– For Parametric Drift failure, if the number of failed modules exceeds 5% of the number of modules submitted to burn-in and electrical measurements the lot shall be rejected.
– If the cumulative total of Parameter Drift Failures and Parameter Limit Failures exceeds 10% of the number of modules submitted to burn-in and electrical measurements, the lot shall be rejected.
(5) Modules LAT sample according to ECSS-Q-ST-60-13C:

Module lot size Sample 1st lot Sample next lots
1 to 25 2 1
26 to 50 3 2
51 to 90 4 3
> 90 5 4



(6) Unless otherwise specified, electrical test temperatures are: Tmin=-55°C and Tmax=+125°C
(7) Generic radiation tests reports are available for every catalogue product. Lot specific radiation tests are performed on demand for a specific product batch.
(8) The End Item Data Package (EIDP) includes all the traceability information for the product (screening summary, embedded parts & materials references, detailed electrical tests results, LAT and DPA reports,).
