Overview: High-Reliability and Radiation-Tolerant MRAM Memory for Space Applications

Radiation-tolerant MRAM (Magneto Resistive Random Access Memory) from 3D PLUS  provides high-reliability memory for space missions. MRAM stores data using magnetic polarization, making it an intrinsic radiation-hardened non-volatile memory cell that is immune to Single Event Upsets (SEUs) while offering SRAM-speed performance. Leveraging Everspin technology, these 3.3 V MRAM stacks ensure unlimited endurance, high data retention times, and versatile data bus widths : x8b, x16b, x32b or x40b. Ideal for space-grade memory solutions, they come in SOP packages designed for high-resistance Surface Mount Technology (SMT) assembly, ensuring they can endure the extreme thermal and mechanical environments of space.

First released in 2007, 3D PLUS MRAM memories have been successfully utilized in space missions such as Glonass, Sentinel 2, and KompSat-6. Its attributes underline MRAM’s importance as a radiation-tolerant, non-volatile memory, making it essential for modern space missions, especially for processor booting, program storage, and FPGA bitstream storage.

Key features

  • Highest density with smallest footprint ( more than 85% area savings on board)

    Unlimited read/write endurance

    20 years data retention

    Small footprint

  • Radiation tolerance:

    TID > 50krad (Si)

    SEL LETth > 85 MeV.cm²/mg

    SEU LETth
    > 85 MeV.cm²/mg (standby)
    10 MeV.cm²/mg  (dynamic);
    σsat = 2E-5 cm²/bit



  • No pure tin guarantee

    Long life cycle products with proven reliability in Space

    Large and worldwide flight heritage

Line Up

Line Up

Each 3D PLUS standard product and SiP solution are defined by a specific part number based on the part number decoder provided below. The ordering information consist as a minimum of the following 3 items for fully define a product:

  • The product’s Part Number
  • The temperature range
  • The  screening level

For High Reliability products or SiPs for Aerospace applications, a Source Control Drawing (SCD#) referenced 3DPA-xxxx is available for each product. It shall be used for its procurement in addition to other ordering information.

Memory Part Number Decoder

Density Part Number Description Package Temperature

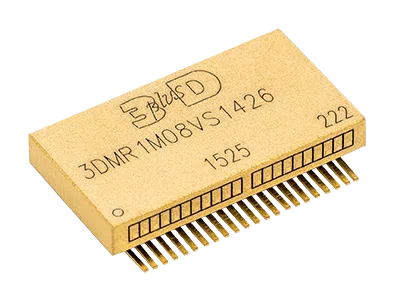

1 Mb 3DMR1M08VS1426 128K x8
40 ns access time		 SOP 44 -55 °C to +105 °C
2 Mb 3DMR2M16VS2427 128K x16
40 ns access time		 SOP 54 -55 °C to +105 °C
4 Mb 3DMR4M08VS4428 512K x8
40 ns access time		 SOP 44 -55 °C to +105 °C
8 Mb 3DMR8M08VS8666 1M x8
40 ns access time		 SOP 44 -55 °C to +105 °C
3DMR8M32VS8420 256K x32
40 ns access time		 SOP 68 -55 °C to +105 °C
10 Mb 3DMR10M40VS5688 256K x40
40 ns access time		 SOP 96 -55 °C to +105 °C
64 Mb 3DMR64M08VS4476 8M x8
40 ns access time		 SOP 54 -55 °C to +105 °C

Design Tools

Design Tools

1 Mb

3DMR1M08VS1426 - Assembly Recommendations PDF - 805 ko Télécharger
3DMR1M08VS1426 - Footprint PDF - 266 ko Télécharger

2 Mb

3DMR2M16VS2427 - Assembly Recommendations PDF - 805 ko Télécharger
3DMR2M16VS2427 - Footprint PDF - 275 ko Télécharger

4 Mb

3DMR4M08VS4428 - Assembly Recommendations PDF - 805 ko Télécharger
3DMR4M08VS4428 - Footprint PDF - 254 ko Télécharger

8 Mb

3DMR8M08VS8666 - Assembly Recommendations PDF - 805 ko Télécharger
3DMR8M08VS8666 - Footprint PDF - 254 ko Télécharger
3DMR8M32VS8420 - Assembly Recommendations PDF - 805 ko Télécharger
3DMR8M32VS8420 - Footprint PDF - 311 ko Télécharger

10 Mb

3DMR10M40VS5688 - Assembly Recommendations PDF - 805 ko Télécharger
3DMR10M40VS5688 - Footprint PDF - 262 ko Télécharger

64 Mb

3DMR64M08VS4476 - Assembly Recommendations PDF - 805 ko Télécharger
3DMR64M08VS4476- Footprint PDF - 280 ko Télécharger

Documentation

Density Part Number Flyer
1 Mb 3DMR1M08VS1426 Flyer PDF - 1094ko Télécharger
2 Mb 3DMR2M16VS2427 Flyer PDF - 868ko Télécharger
4 Mb 3DMR4M08VS4428 Flyer PDF - 1045ko Télécharger
8 Mb 3DMR8M08VS8666 Flyer PDF - 1054ko Télécharger
8 Mb 3DMR8M32VS8420 Flyer PDF - 911ko Télécharger
10 Mb 3DMR10M40VS5688 Flyer PDF - 1052ko Télécharger
64 Mb 3DMR64M08VS4476 Flyer PDF - 1042ko Télécharger
