Memory DDR3 SDRAM INDUSTRIAL

Demande d'information

  • DDR3 SDRAM INDUSTRIAL

Overview

3D PLUS provides compact DDR3 modules including termination resistors and decoupling capacitors for applications requiring high-speed computing memory.
Thanks to 3D PLUS proven stacking technology, DDR3 ruggedized modules offer high reliability in BGA packages for harsh environments.

Key features

  • Up to 32Gb Memory Density

  • Wide Data bus x8, x16, x32 and x72

  • Small form factor and low profile

  • Extended/Specific temperature range

  • Lead free or SnPb solderballs

  • Excellent signal Integrity and High Reliability

Line up

Line Up

Each 3D PLUS standard product and SiP solution are defined by a specific part number based on the part number decoder provided below. The ordering information consist as a minimum of the following 3 items for fully define a product:

  • The product’s Part Number
  • The temperature range
  • The quality grade

For High Reliability products or SiPs for Aerospace applications, a Source Control Drawing (SCD#) referenced 3DPA-xxxx is available for each product. It shall be used for its procurement in addition to other ordering information.

Memory Part Number Decoder



Part Number Density Configuration Voltage Clock rate Package Temperature Balls

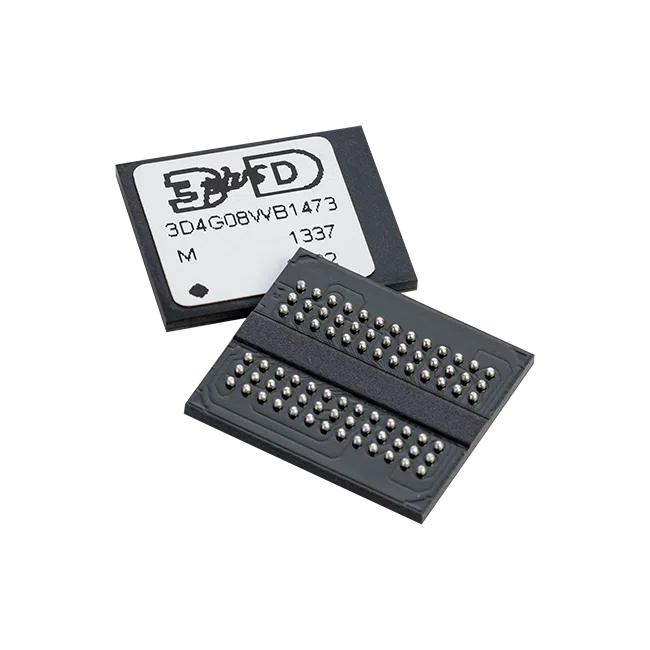

3D3D4G08WB1473 4Gbit 512Mbit x 8 1.5 V 533 – 800 MHz BGA 78 I, M RoHS
3D3D4G16WB1627  4Gbit 256Mbit x 16 1.5 V 533 – 800 MHz BGA 96 I, S, M RoHS
3D3D8G08WB1616 8Gbit 2 x (512Mbit x 8) 1.5 V 533 – 800 MHz BGA 78 I, M RoHS
3D3D8G32WB1741  8Gbit 256Mbit x 32 1.5 V 533 – 800 MHz BGA 136 I, S, M SnPb / RoHS
3D3D8G32YB1741  8Gbit 256Mbit x 32 1.35 V 533 – 800 MHz BGA 136 I, S, M SnPb / RoHS
3D3D16G16WB2659 16Gbit 2 x (512Mbit x 16) 1.5 V 533 – 667 MHz BGA 96 I, S, M SnPb
3D3D16G32WB2650 16Gbit 512Mbit x 32 1.5 V 533 – 667 MHz BGA 136 I, S, M SnPb
3D3D16G72WB2768 16Gbit 256Mbit x 72 1.35 V
1.5 V
533 – 667 MHz BGA 223 I, S, M SnPb

Documentation

Other technical documentation is available under request: IBIS, RTL, Step and Mechanical file, Radiation Report.

P/N Density Data Sheet
3D3D4G08WB1473 4Gbit Data Sheet PDF - 1497ko Télécharger
3D3D4G16WB1627 4Gbit Data Sheet PDF - 1261ko Télécharger
3D3D8G08WB1616 8Gbit Data Sheet PDF - 1154ko Télécharger
3D3D8G32WB1741 8Gbit Data Sheet PDF - 2412ko Télécharger
3D3D8G32YB1741 8Gbit Data Sheet PDF - 2412ko Télécharger
3D3D16G16WB2659 16Gbit Data Sheet PDF - 1600ko Télécharger
3D3D16G32WB2650 16Gbit Data Sheet PDF - 1635ko Télécharger
3D3D16G72WB2768 16Gbit Data Sheet PDF - 817ko Télécharger
