Overview: DDR3 SDRAM Space Qualified Memory

DDR3 SDRAM is the upgrade of DDR2 Space Memory with higher speed and lower power consumption. From 16 Gb to 24 Gb, our Radiation Tolerant DDR3 SDRAM memories are organized as x16b, x48b or x72b, and with a 1.35 V or 1.5 V power supply. 3D PLUS DDR3 SDRAM space memories embed decoupling capacitors for excellent signal integrity and additional real estate savings on the users’ PCBs. They are offered in standard BGA package for high resistance Surface Mount (SMT) assembly and withstanding harsh thermal and mechanical environments.

THE DDR3 SPACE MEMORY ECOSYSTEM

Released on the space market in 2018, 3D PLUS DDR3 SDRAM products are used as processing memory in a variety of high performance computer boards for space applications. They operate synergistically in an Ecosystem with two additional elements, providing  all-in-one, fully space qualified and radiation immune DDR3 memory solution. The DDR3 memory companion chips are:

  • The Radiation Intelligent Memory Controller (RIMC) for DDR3 (3DIPMC0744) is a fully configurable DDR3 SDRAM memory controller designed to work with 3D PLUS DDR3 modules to provide an overall radiation hardened memory solution. This IP core offers Single Event Upset (SEU) mitigation and Single Event Functional Interrupt (SEFI) protection to DDR3 operating in radiation-hazard environments.
  • A radiation hardened by design Termination Regulator DDR3 TR (3DPM0385). It provides enhanced termination and impedance adaptation, dramatically improving signal integrity.

3D PLUS DDR3 SDRAM space memory have been use in diverse missions such as: EMIT, and others.

Key features

  • 1.5 V supply voltage, 1.35 V backward compatible

    Up to 667 MT/s

  • Decoupling capacitors and termination resistors embedded

    Significant board area savings

    Optimized development time and cost

  • Long life cycle products with proven reliability in Space

    No pure tin guarantee

    Ruggedized, fully validated complete DDR3 solution

  • Radiation tolerance (stand alone):

    TID > 75 krad(Si)

    SEL LETth > 67 MeV.cm²/mg

    SEU LETth : 0.4 MeV.cm²/mg ;
    σsat = 1.05E-11 cm²/bit

    SEFI LETth : 0.4 MeV.cm²/mg ;
    σsat = 6.18E-6 cm²/device

  • Radiation tolerance (w. RIMC DDR3):

    TID > 75 krad (Si)

    SEL LETth > 67 MeV.cm²/mg

    SEU mitigation with 3DIPMC0744

    SEFI protection with 3DIPMC0744

  • Available in all 3D PLUS screening and qualification options:

    Commercial (C )

    Industrial (I)

    Space qualified (S)

Line Up

RADIATION TOLERANT DDR3 SPACE MEMORY Line Up

Each 3D PLUS standard product and SiP solution are defined by a specific part number based on the part number decoder provided below. The ordering information consist as a minimum of the following 3 items for fully define a product:

  • The product’s Part Number
  • The temperature range
  • The screening level

For High Reliability products or SiPs for Aerospace applications, a Source Control Drawing (SCD#) referenced 3DPA-xxxx is available for each product. It shall be used for its procurement in addition to other ordering information.

Memory Part Number Decoder

Density Part Number Description Package Temperature
16 Gb 3D3D16G16YB4751 1G x16
1333 MT/s
BGA 95 -40 °C to +105 °C

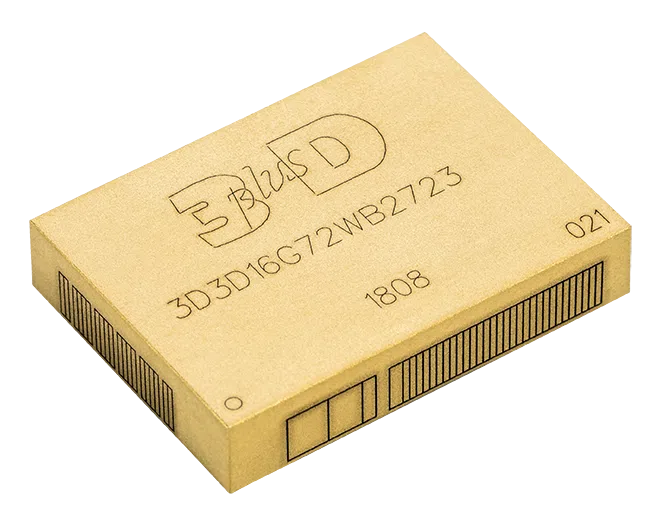

3D3D16G72WB2723 256M x72
1333 MT/s
BGA 199 -40 °C to +105 °C
24 Gb 3D3D24G48YB2732 512M x48
1333 MT/s
BGA 239 -40 °C to +105 °C



Design Tools

Design Tools

16 Gb

3D3D16G16YB4751 - Assembly Recommendations PDF - 1452 ko Download
3D3D16G16YB4751 - Footprint PDF - 322 ko Download
3D3D16G72WB2723 - Assembly Recommendations PDF - 1452 ko Download
3D3D16G72WB2723 - Footprint PDF - 327 ko Download

24 Gb

3D3D24G48YB2732 - Assembly Recommendations PDF - 1452 ko Download
3D3D24G48YB2732 - Footprint PDF - 398 ko Download

Documentation

Module Part Data Sheet Unused pins Decoupling capacitor
16 Gb 3D3D16G16YB4751 Data Sheet PDF - 1815ko Download Unused pins PDF - 229ko Download Decoupling capacitor PDF - 163ko Download
16 Gb 3D3D16G72WB2723 Data Sheet PDF - 2937ko Download Unused pins PDF - 355ko Download Decoupling capacitor PDF - 376ko Download
24 Gb 3D3D24G48YB2732 Data Sheet PDF - 4086ko Download Unused pins PDF - 229ko Download Decoupling capacitor PDF - 294ko Download
