3D PLUS has more than 210,000 microelectronics components in space, and more than 25 years of flight heritage with no reported failure. Our Flight Heritage is expanding continuously with products launched in Space every month in LEO, MEO and GEO orbits, for deep space exploration missions, for satellite constellation fleets, and for governmental missions in Europe, America, and Asia. Our Flagship missions include Mars 2020, Mars Science Laboratory, Rosetta, New Horizons, Juno, OneWeb, AlphaSat, Sentinel, Ariane 5, ISS, Parker Solar Probe, Insight, and many more.
Request information

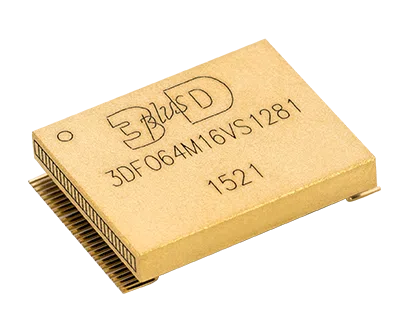

3D PLUS offers state-of-the-art NOR Flash stacks powered at 3.3V, specifically designed for space applications. These high-density, high-speed Non-Volatile memories stand out due to their exceptional performance and reliability. With x8b or x16b data bus width and an asynchronous parallel interface, the NOR Flash provides zero bad block, ensuring exceptional endurance and long-term data retention. Packaged in SOP for high resistance Surface Mount (SMT) assembly, these modules are built to withstand harsh thermal and mechanical conditions, such as the space environment.
Since their introduction in 2008, 3D PLUS NOR Flash memory modules have set the standard for high-density, space-grade NOR Flash. Ideal for small-density Solid State Data Recorders and essential for processor boot and Program ROM in high-performance computer boards, these reliable memory solutions have powered groundbreaking missions like MSL, Insight, Mars 2020, and the EMM-Hope Probe. With a proven track record, 3D PLUS radiation-tolerant NOR Flash modules remain the go-to choice for critical space applications.
Parallel access interface x 8 or x16
20 years data retention
Small footprint
Radiation tolerance:
TID > 20 krad (Si)
SEL LETth > 51.2 MeV.cm²/mg
SEU LETth > 10.0 MeV.cm²/mg; σsat = 1e-11 cm²/bit
Available in all 3D PLUS screening and qualification options:
Commercial (C )
Industrial (I)
Space qualified (S)
Long life cycle products with proven reliability in Space
No pure tin guarantee
Large and worldwide flight heritage
Each 3D PLUS standard product and SiP solution are defined by a specific part number based on the part number decoder provided below. The ordering information consist as a minimum of the following 3 items for fully define a product:
For High Reliability products or SiPs for Aerospace applications, a Source Control Drawing (SCD#) referenced 3DPA-xxxx is available for each product. It shall be used for its procurement in addition to other ordering information. Memory Part Number Decoder
