Overview

Radiation hardened Low Voltage Technology (LVT) line dual 16-bit transceivers and level shifters in a highly miniaturized package, bring the maximum area and weight savings for Space applications board’s designs. Conceived for low power and very high speed applications. Performs cold sparing and bus hold function enabling a two-way asynchronous communication between buses (address, data). The direction of data transmission is determined by a digital input. The two enable inputs, can be used to disable the device cold-sparing the component to the bus. Enable inputs can be shorted together to provide 32-bit operation.

Devices are offered with standard SOP footprint for high resistance SMT assembly and for withstanding harsh thermal and mechanical environments.

LVT product line offers a wide range of supply voltages suitable for high reliability and all space applications such as commercial or scientific GEO stationary mission, Earth observation, navigation, manned space vehicles and deep space scientific exploration.



Key features

  • Highest density (32 channels in one single package)

  • Extended voltage range

    High current driving capability

  • Ultra low power consumption

    High speed outputs

  • Bus hold provided on both sides

    Cold spare function

  • Radiation tolerance:

    TID > 100 krad(Si)

    SEL Immune

    SEU Immune

  • Space quality grade

    Technology proven for 15 to 18 years missions in Space

    Worldwide delivery guarantee

Line Up

Line Up

Each 3D PLUS standard product and SiP solution are defined by a specific part number based on the part number decoder provided below. The ordering information consist as a minimum of the following 3 items for fully define a product:

  • The product’s Part Number
  • The temperature range
  • The quality grade

For High Reliability products or SiPs for Aerospace applications, a Source Control Drawing (SCD#) referenced 3DPA-xxxx is available for each product. It shall be used for its procurement in addition to other ordering information.

Interfaces Part Number Decoder



Product Part Number Description Package Temperature
Buffer Transceiver 3DLT162245VS1639 Dual 16-bit buffer/transceiver
24mA driving capability
tpd: 1-4ns
SOP82 C, I, M
3.3V to 5V Level Shifter 3DLT164245VS1645 3.3V to 5V dual 16-bit bidirectional level shifter SOP82

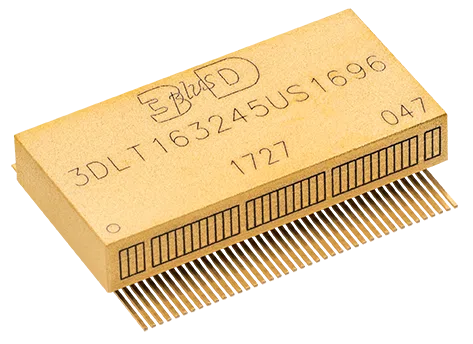

1.8V to 3.3V Level Shifter 3DLT163245US1696 1.8V to 3.3V dual 16-bit bidirectional level shifter SOP82

Design tools

Design tools

Buffer Transceiver

Tech Docs (footprints) PDF - 190 ko Download
Assembly Recomendations PDF - 805 ko Download

3.3V to 5V Level Shifter

Tech Docs (footprints) PDF - 190 ko Download
Assembly Recomendations PDF - 805 ko Download

1.8V to 3.3V Level Shifter

Tech Docs (footprints) PDF - 190 ko Download
Assembly Recomendations PDF - 805 ko Download

Documentation

Other technical documentation is available under request: IBIS, RTL, Step and Mechanical file, Radiation Report.

Product Part Number Flyer
Buffer Transceiver 3DLT162245VS1639 Flyer PDF - 180ko Download
3.3V to 5V Level Shifter 3DLT164245VS1645 Flyer PDF - 185ko Download
1.8V to 3.3V Level Shifter 3DLT163245US1696 Flyer PDF - 186ko Download
