3D PLUS has more than 210,000 microelectronics components in space, and more than 25 years of flight heritage with no reported failure. Our Flight Heritage is expanding continuously with products launched in Space every month in LEO, MEO and GEO orbits, for deep space exploration missions, for satellite constellation fleets, and for governmental missions in Europe, America, and Asia. Our Flagship missions include Mars 2020, Mars Science Laboratory, Rosetta, New Horizons, Juno, OneWeb, AlphaSat, Sentinel, Ariane 5, ISS, Parker Solar Probe, Insight, and many more.
Request information

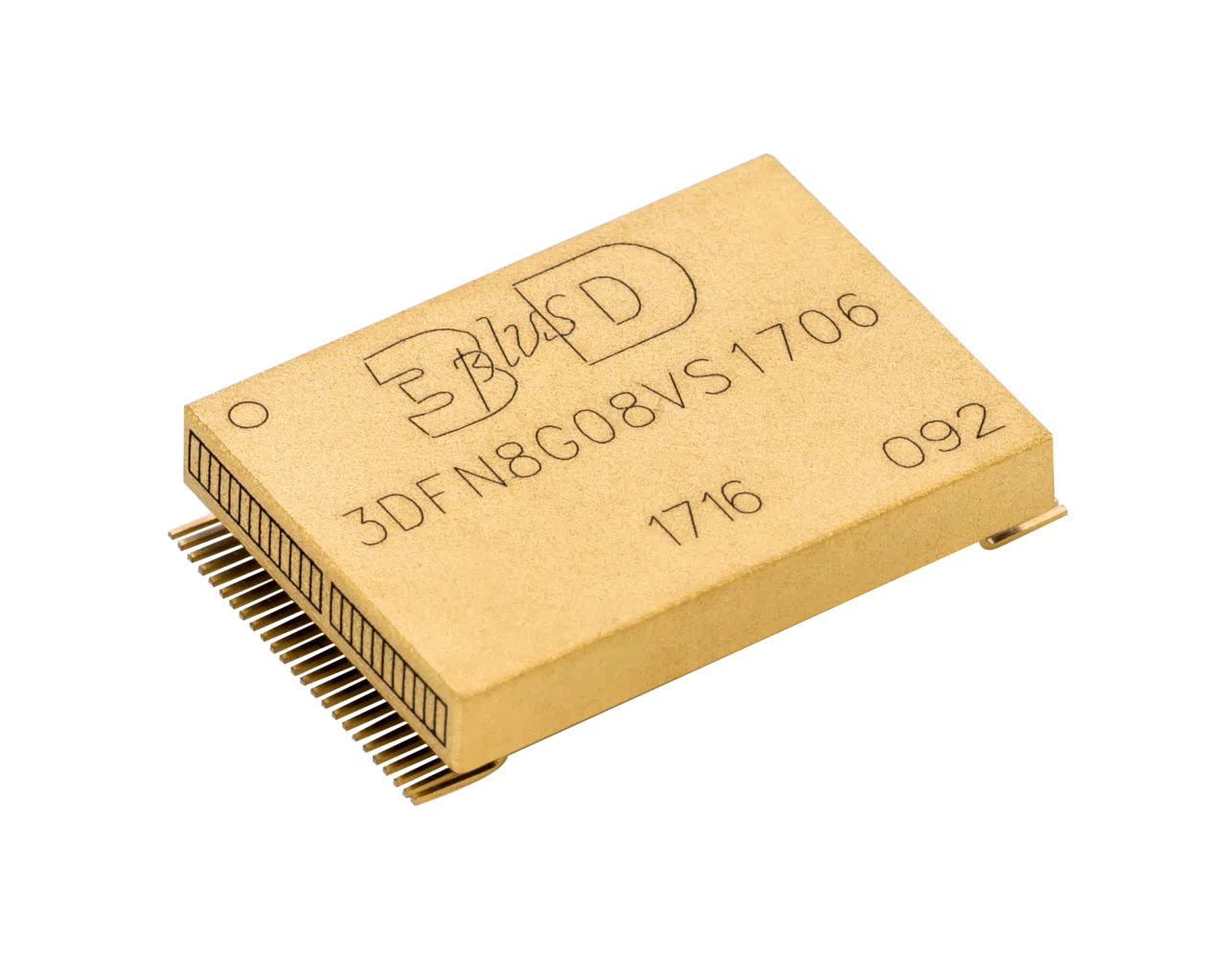

Our Radiation Tolerant NAND Flash stacks are latch-up immune memories based on SLC NAND Flash technology with asynchronous and/or synchronous parallel interface. They are featuring high density, high endurance, long time data retention and x8b or x16b data bus width. The modules are offered in SOP or BGA package for high resistance Surface Mount (SMT) assembly and for withstanding harsh thermal and mechanical environments.
First released in 2003, 3D PLUS NAND Flash have the highest density for high requirements space applications. They are used for mass data storage in high density, non volatile and low power Solid State Data Recorders in a various missions such as: New Horizons, CYGNSS, Exomars 2016, Insight, Change’5, Solar Orbiter, and others.
100, 000 program/erase cycles capability
10 years data retention
Radiation tolerance:
TID > 60 krad (Si)
SEL LETth > 62.5 MeV.cm²/mg
SEU LETth > 1.3 MeV.cm²/mg ; σsat = 2E-10 cm²/bit
Available in all 3D PLUS screening and qualification options:
Commercial (C )
Industrial (I)
Space qualified (S)
Flight heritage with technology proven for 15 to 18 years missions in space
No pure tin guarantee
Worldwide delivery guarantee
Each 3D PLUS standard product and SiP solution are defined by a specific part number based on the part number decoder provided below. The ordering information consist as a minimum of the following 3 items for fully define a product:
For High Reliability products or SiPs for Aerospace applications, a Source Control Drawing (SCD#) referenced 3DPA-xxxx is available for each product. It shall be used for its procurement in addition to other ordering information. Memory Part Number Decoder
New Horizons is a NASA mission to study the dwarf planet Pluto, its moons, and other objects in the Kuiper Belt.
