COMBO: Space-Grade Configuration Memory Boot Manager

COMBO: Space-Grade Configuration Memory Boot Manager

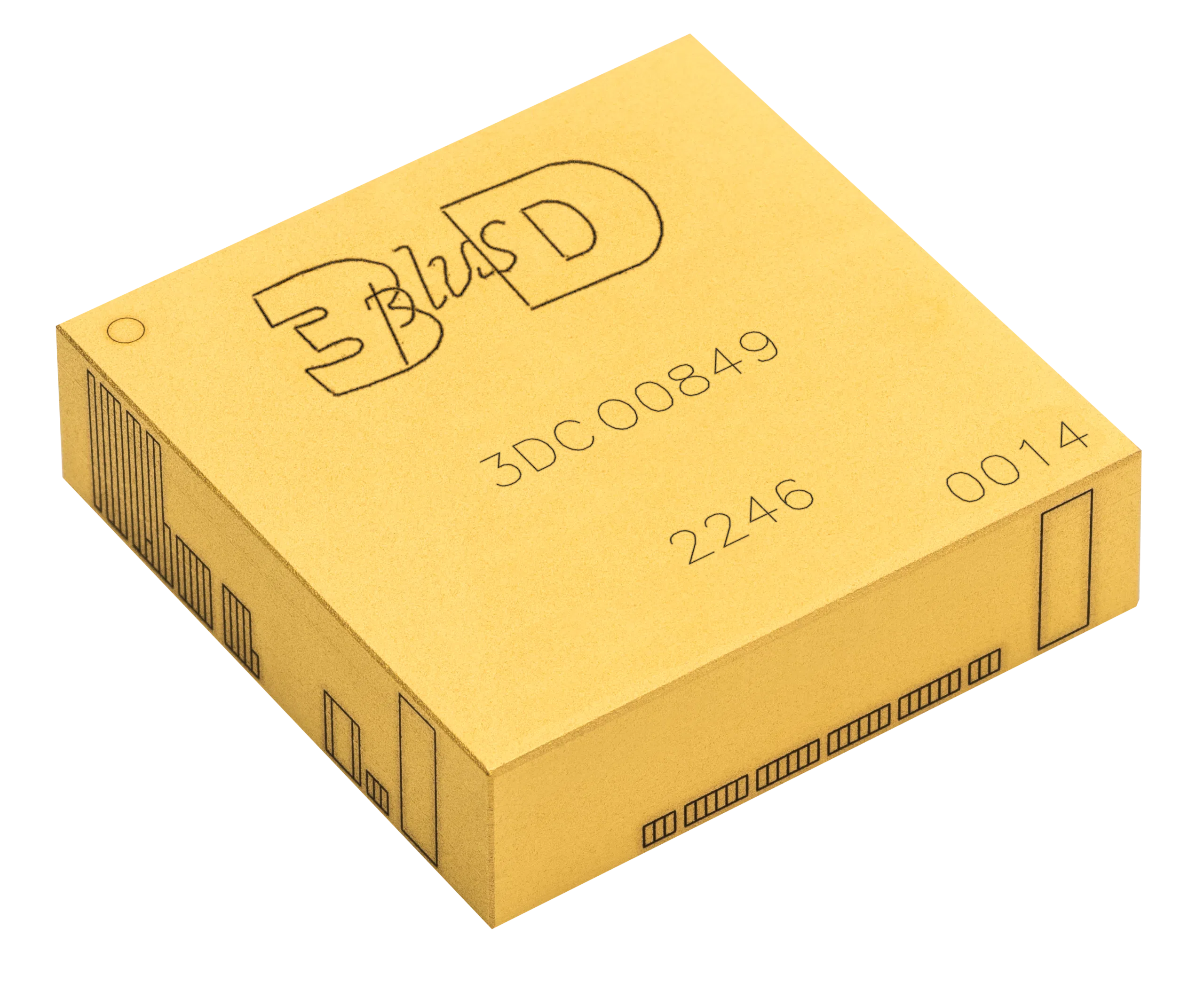

3DCO0849

The 3DCO0849 COMBO, developed by 3D PLUS, is an innovative COnfiguration Memory Boot Manager designed to configure and scrub high-end SRAM-based FPGAs and MPSoCs. This cutting-edge module is ideal for applications requiring extensive configuration memory, making it a top choice for space missions.

Comprehensive Integration and Compact Design

The 3DCO0849 COMBO module offers a unique solution by integrating all necessary hardware resources into a single module. This allows for the booting of SRAM-based FPGAs within the smallest PCB footprint available. The compact design is important for space applications where minimizing size and weight is essential.

Key Features of the 3DCO0849 COMBO

  • High Storage Capacity: With 16 Gb of storage, the COMBO module can store multiple FPGA configuration bitstreams and OS images for embedded processors, ensuring all critical data is readily accessible.
  • Efficient Booting and Configuration: The COMBO module works in booting and configuring SRAM-based FPGAs from stored configuration images, ensuring a smooth and efficient startup process.
  • Data Integrity and Protection: The module guarantees the integrity and protection of stored bitstreams and OS images, providing strong mechanisms to prevent data corruption and loss.
  • Error Detection and Correction: The COMBO supports advanced error detection for SRAM-based FPGAs, ensuring reliability and performance in the demanding environment of space.
  • In-Flight Reconfiguration: This feature allows for in-flight reconfiguration, which is vital for adapting to mission requirements and addressing unforeseen challenges during a mission.
  • Persistent File Storage: For missions requiring long-term data retention, the COMBO offers persistent file storage, ensuring critical data remains accessible throughout the mission.
  • File Protection: The module provides comprehensive file protection mechanisms, ensuring all stored data is secure and protected from potential threats.

Compatibility with Leading FPGA Types

The 3DCO0849 COMBO is compatible with  AMD Versal™. This compatibility ensures seamless integration into various space systems, enhancing its versatility and utility.

Block Diagram
