3D PLUS has more than 210,000 microelectronics components in space, and more than 25 years of flight heritage with no reported failure. Our Flight Heritage is expanding continuously with products launched in Space every month in LEO, MEO and GEO orbits, for deep space exploration missions, for satellite constellation fleets, and for governmental missions in Europe, America, and Asia. Our Flagship missions include Mars 2020, Mars Science Laboratory, Rosetta, New Horizons, Juno, OneWeb, AlphaSat, Sentinel, Ariane 5, ISS, Parker Solar Probe, Insight, and many more.
Request information

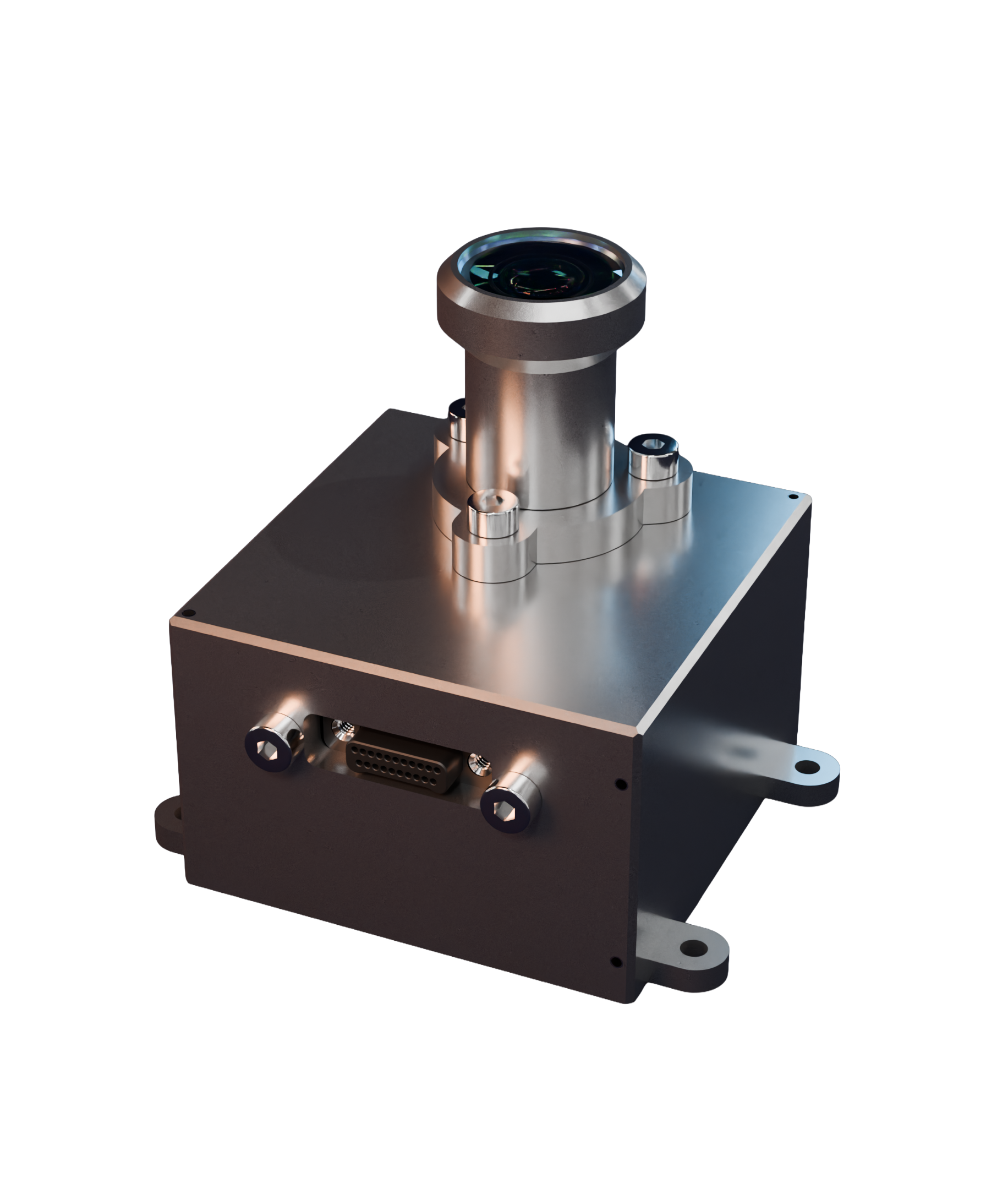

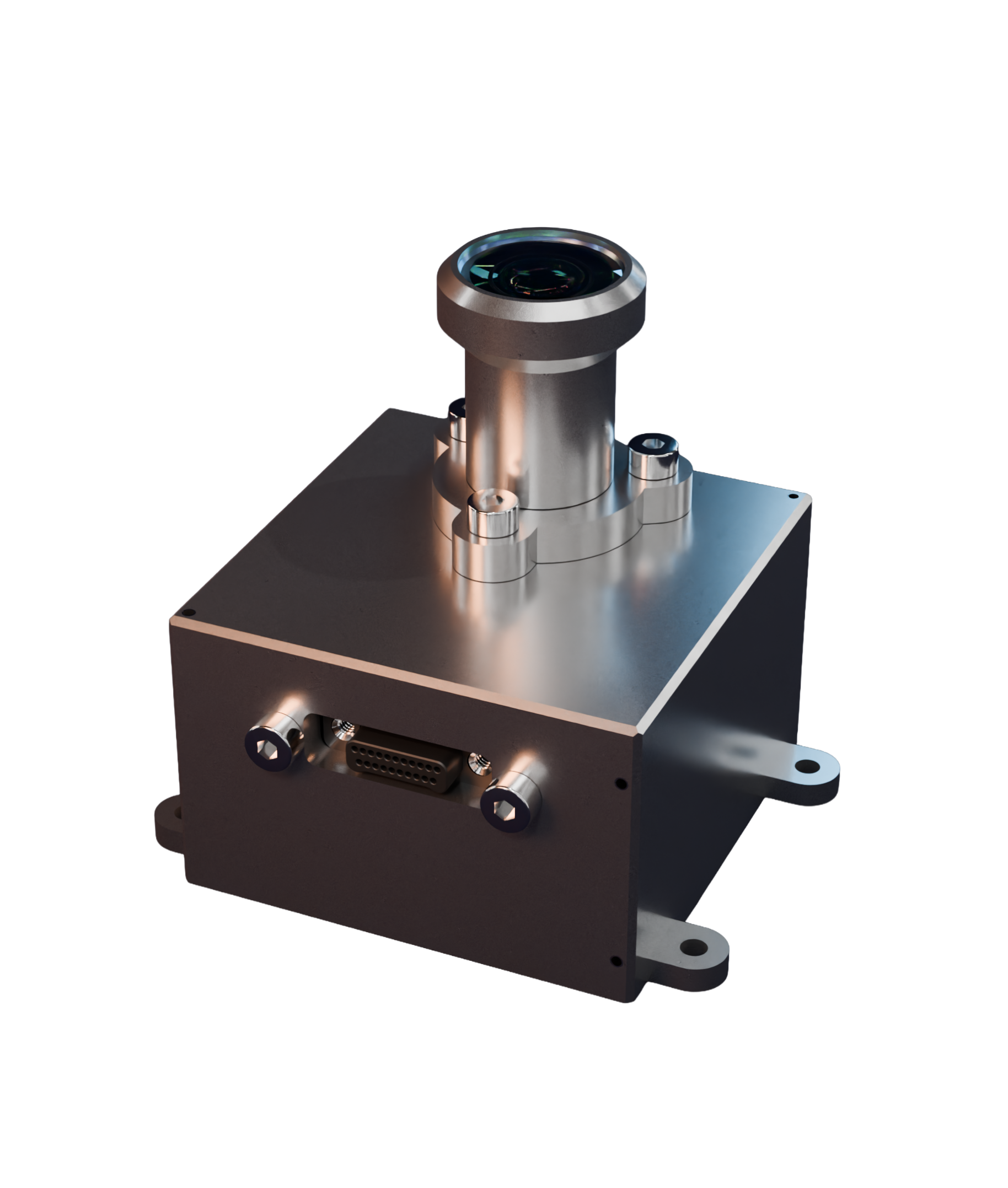

ASTERIA is 3D PLUS new space camera product, designed to answer exploration, surveillance and science missions requirements to provide an ultra-miniaturized space camera. Its architecture combine high resolution, high performance and space hardening in a low SWaP-C design for optimal performances in the most extreme space environments.
8 Megapixel Visible CMOS
4K 30 fps / Full HD 60 fps / HD 120 fps
Volume/Mass • Less than 35x35x43 mm • Less than 70g
Integrated image processing : Auto-exposure, Color/Gamma/Pixel correction, HDR, Windowing, Compression
Environment • Suitable for LEO (10 years) / GEO (15 years) • -55 to +85°C operating temperature
Interface : • Gigabit Ethernet or SpaceWire • 5V Power supply
Field of View : 80° or 50° Horizontal FoV
Each 3D PLUS standard product and SiP solution are defined by a specific part number based on the part number decoder provided below. The ordering information consist as a minimum of the following 3 items for fully define a product:
For High Reliability products or SiPs for Aerospace applications, a Source Control Drawing (SCD#) referenced 3DPA-xxxx is available for each product. It shall be used for its procurement in addition to other ordering information. Camera Part Number Decoder
Other technical documentation is available under request: IBIS, RTL, Step and Mechanical file, Radiation Report.
