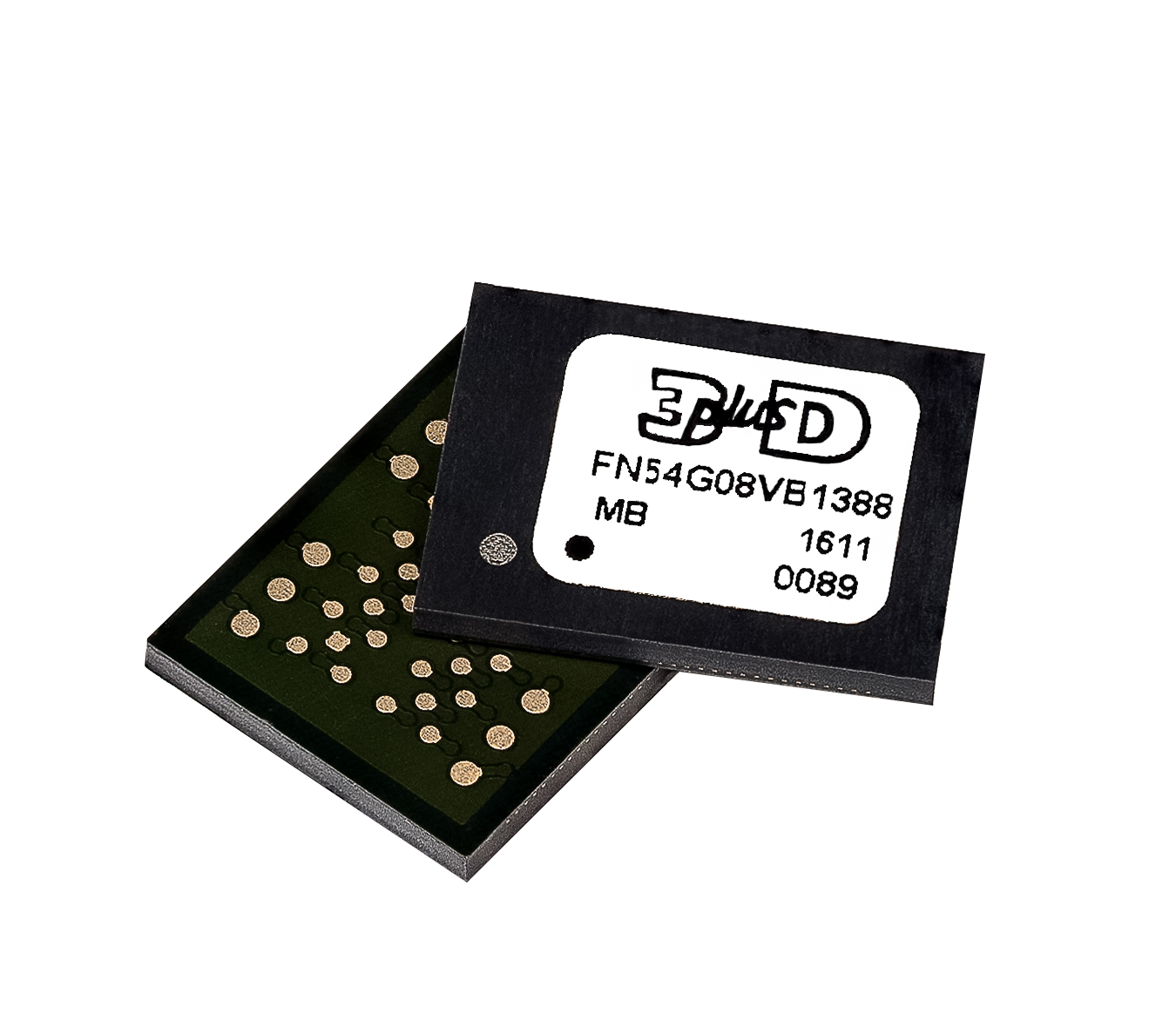

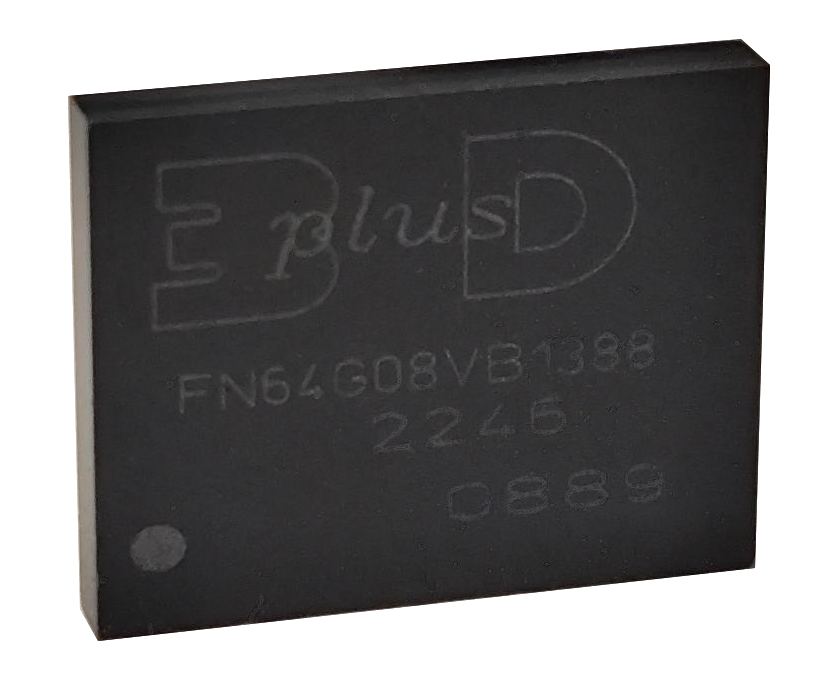

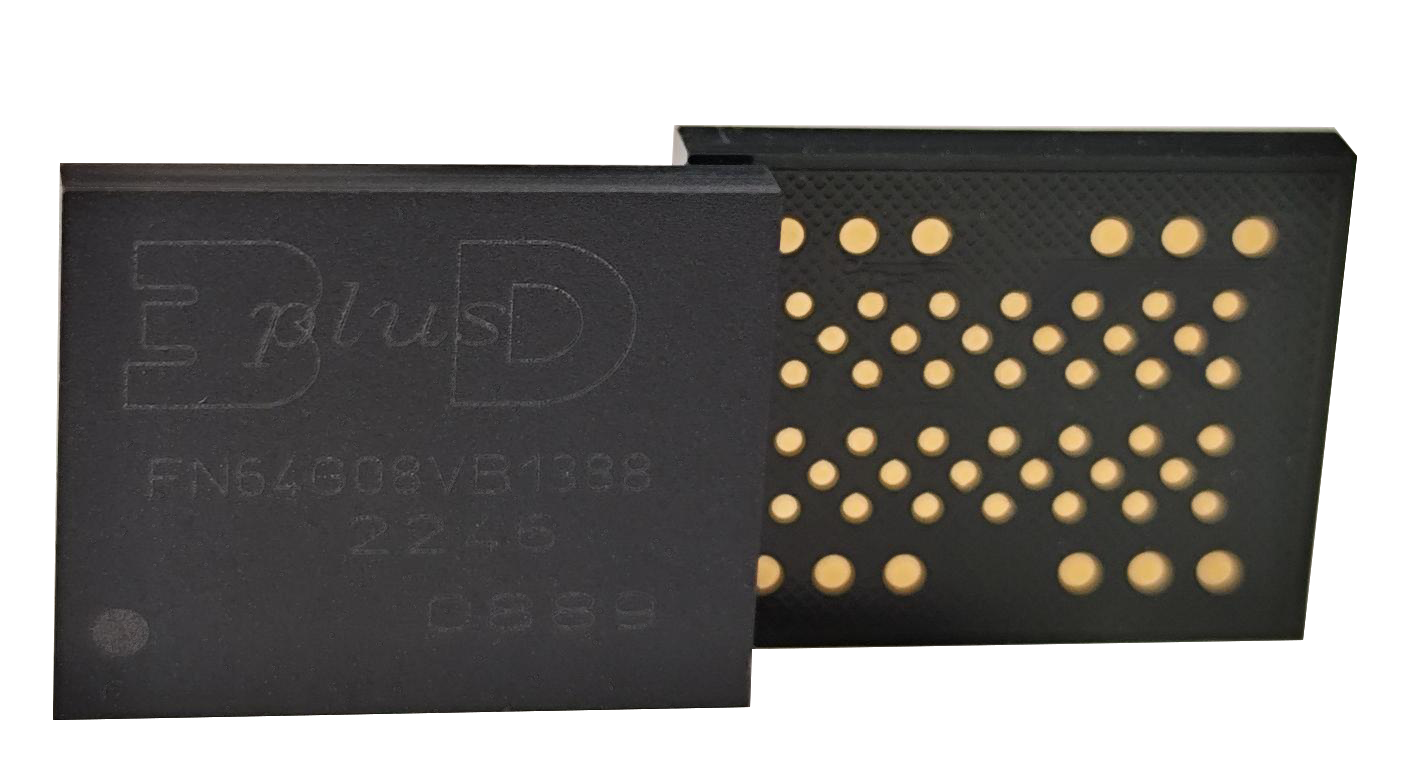

  • 3D PLUS 64Gb NAND Flash Industrial memory 3DFN64G08VB1388
    3D PLUS 64Gb NAND Flash Industrial memory 3DFN64G08VB1388 NAND FLASH INDUSTRIAL
  • 3D PLUS 64Gb NAND Flash Industrial memory 3DFN64G08VB1388
    3D PLUS 64Gb NAND Flash Industrial memory 3DFN64G08VB1388
Demande d'information

High-Performance 64Gb NAND Flash Memory by 3D PLUS – Built for Reliability

3D PLUS delivers high-density 64Gb NAND Flash memory, engineered for applications demanding robust, high-speed storage solutions. Our 64Gb NAND Flash is organized in a x8 architecture and operates at a 3.3V power supply, ensuring optimal efficiency and perfect integration into your systems.

Available in industrial and military temperature ranges. These ruggedized dual die NAND Flash are designed to excel in harsh environments, making them ideal for aerospace, defense, and industrial applications. With 3D PLUS, you gain long-term supply continuity and exceptional durability, guaranteeing sustained support for your critical projects.

Key features

  • 64Gb Memory Density

  • SLC technology

  • Small form factor and low profile

  • Up to 100K Write/Erase cycles capability

  • Up 10 years data retention

  • Industrial or military temperature range

Line Up 3D PLUS 64Gb NAND Flash Industrial memory 3DFN64G08VB1388

Line Up

Each 3D PLUS standard product and SiP solution are defined by a specific part number based on the part number decoder provided below. The ordering information consist as a minimum of the following 3 items for fully define a product:

  • The product’s Part Number
  • The temperature range
  • The quality grade

Memory Part Number Decoder



Part Number Density Configuration Voltage Access time Package Temperature
3DFN64G08VB1388  64Gbit 8Gbit x 8 3.3 V Asynchronous LGA 52 I, S, M

Documentation

Other technical documentation is available under request: IBIS and mechanical file.

Part Number Density Datasheet
3DFN64G08VB1388 64Gbit Datasheet PDF - 838ko Télécharger
